For Industrial Production of Snap-Lock Standing Seam Panels
Snap-Lock standing seam roof panels are designed for easy installation and a clean look with no exposed fasteners. This metal roofing solution is trending worldwide. The Snap-Lock panel can be flat or feature aesthetic ribs.
The Profiilikeskus Snap-Lock roll forming machine is the ideal solution for high-volume production of standing seam panels.
An Industry 4.0-Compliant Machine
The industrial Snap-Lock rollformer includes a punching unit for creating fastener holes and an eaves-bending unit that forms a return on the panel so it can lock into the drip edge at the bottom of the roof.
The machine is easy to operate via a touchscreen control system. It is equipped for remote support and designed to integrate with a production plant’s ERP system, in line with Industry 4.0 standards. This ensures real-time order tracking between production and administration.
Custom Panels
Various grooving and embossing options are available to produce visually striking panels. Machines can also be configured to produce different panel widths.
Up to 5,900 ft² per Hour
The next-generation Snap-Lock rollforming line can reach production speeds of nearly 6,000 ft² per hour.
This is made possible by flying eaves-bending and cutting units. Instead of stopping the line for bending and cutting, the tools follow the panel along the machine, performing operations on the fly.
The machine’s high speed is paired with a fast robotic stacker that arranges the panels according to the client’s preferred stacking method.
High quality end-product
The latest Snap-Lock rollformer models feature an enhanced profile and locking system. The result is superior panel quality, both visually and technically, setting a new benchmark for performance.
In Europe, these panels have undergone rigorous laboratory testing and have been certified to withstand wind speeds of up to 50 m/s (111 mph) for steel and 45 m/s (100 mph) for copper. These wind speeds are equivalent to a Category 2 hurricane.

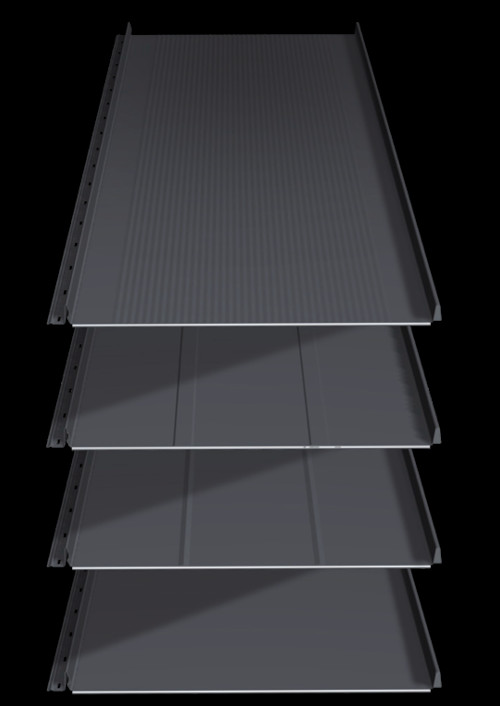

Examples of Standing Seam Snap-Lock panels
Snap-Lock rollforming machine
Next Generation Snap-Lock standing seam roll forming machine

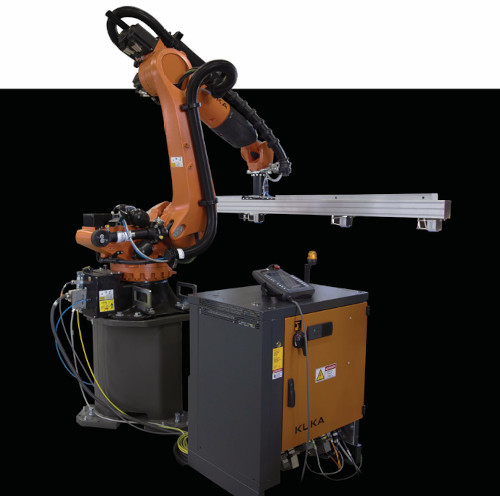

Stacking robot for Snap-Lock panels
