Finishing accessories like roof edges, drip edges, flashings, and ridge caps are essential for a metal roof. Traditionally, these accessories are made using press brakes or other mainly manual tools.
When production volumes increase, manufacturing finishing accessories quickly becomes labor-intensive and requires several employees who might be needed for other tasks.
In such cases, switching the production of certain finishing accessories to a rollforming machine makes sense. By rollforming instead of bending, parts can be produced in a single continuous motion, significantly reducing production time.
Rollforming One or Several Roof Finishing Accessories on a Single Machine
Profiilikeskus manufactures machines for roof finishing accessories and other thin profiles, either for a single profile or for several different ones. The machines can be equipped with simple control units to select the number of pieces and quantities to be produced, or with advanced touchscreen control units allowing more complex settings and even ERP connectivity.
For very high volumes of different accessories, the high-capacity cassette machine enables industrial-scale production and an unlimited selection of profiles. Switching from one profile to another is as easy as installing the cassette set for the desired profile. If a profile is produced in different widths, variable-width cassettes can be created. It is also possible to add new cassette sets later on if additional roofing accessories are added to the product portfolio.
Even Complex Parts Can Be Rollformed
For more complex parts that require not just bending but also pressing or embossing, Profiilikeskus can build specialized machines.
For example, ridge caps commonly used on tile-sheet panels are semi-round parts with regularly spaced pressings to reinforce the part. The ridge cap machine for tile panels therefore includes a rollforming section, followed by a press and then a shear cutter. The control unit allows users to set the spacing between pressings, as well as the material length between the edge and the first pressing.
Rollformer for roof edges

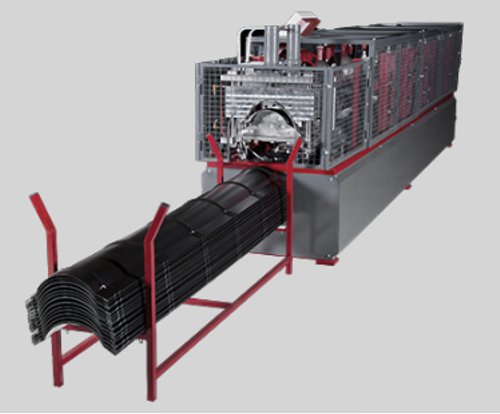

Tile-sheet ridge cap rollformer

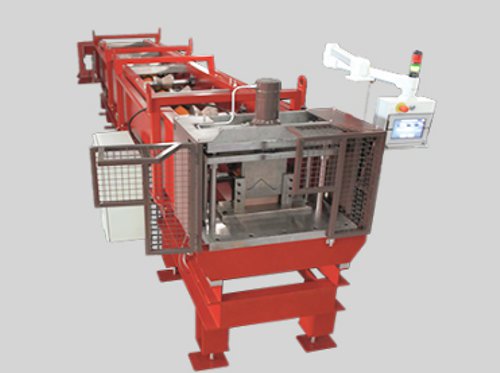

Cassette rollformer for flashings

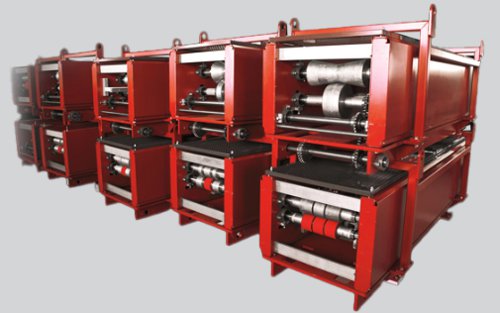

Cassette sets for the cassette rollformer for flashings
